High Air Pressure Compressors

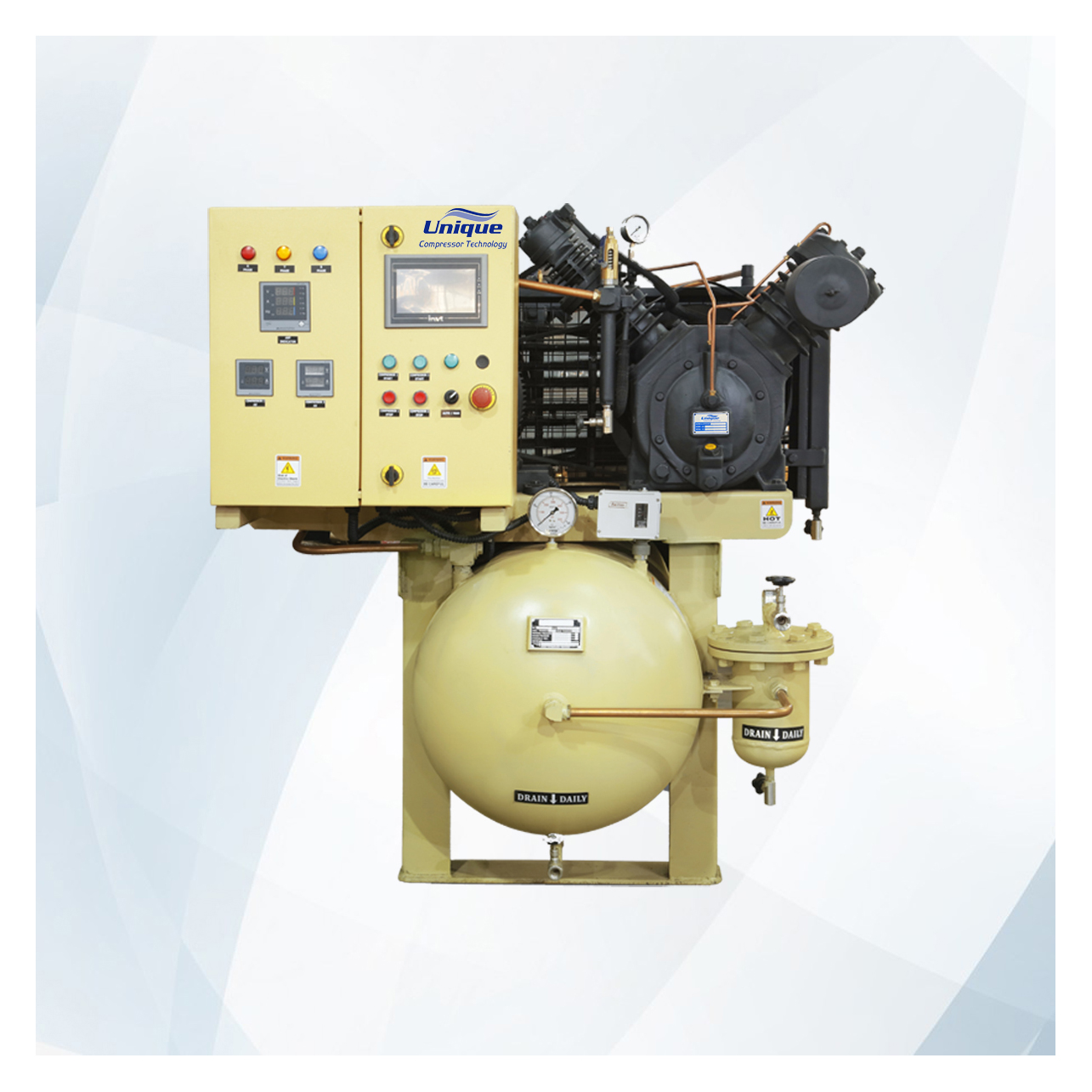

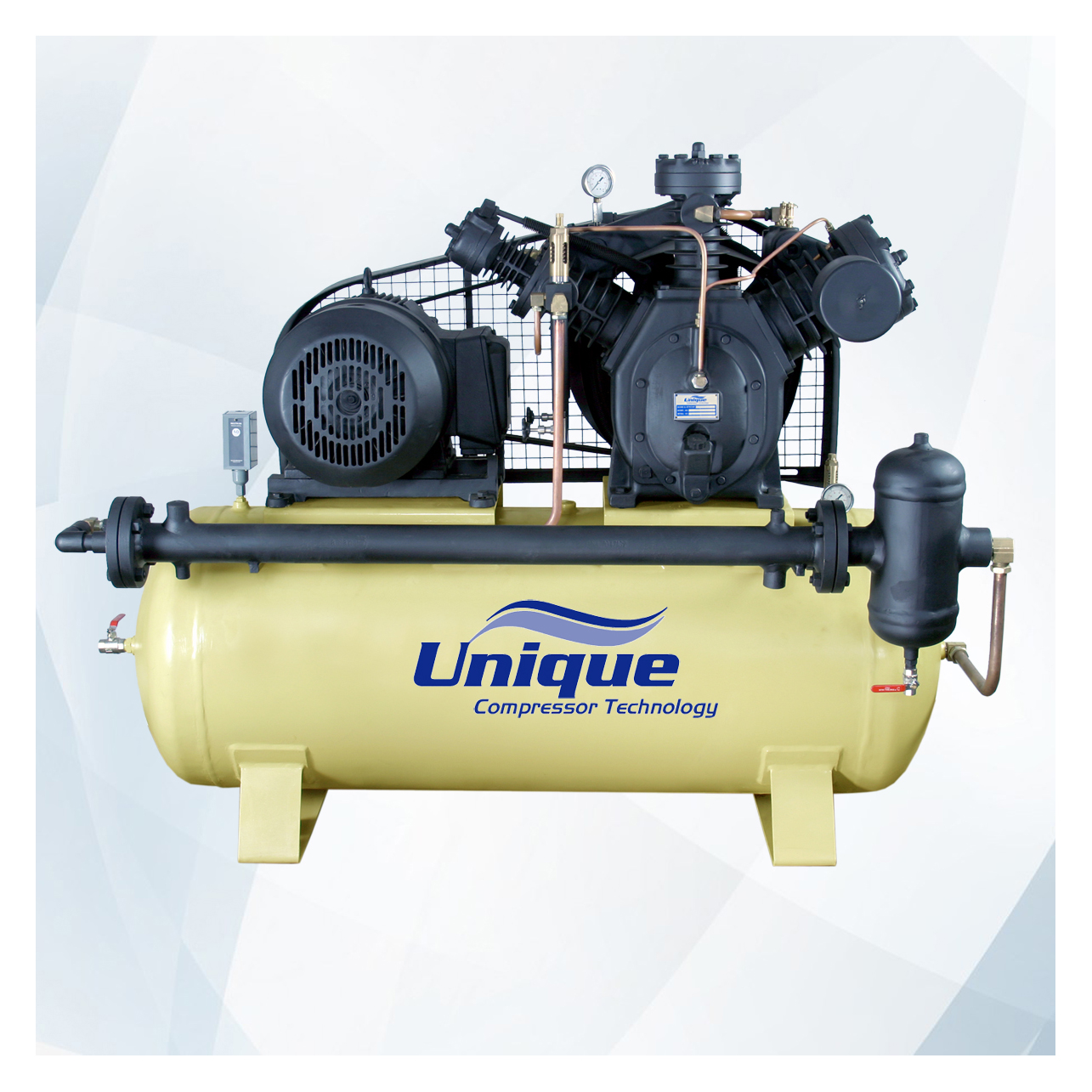

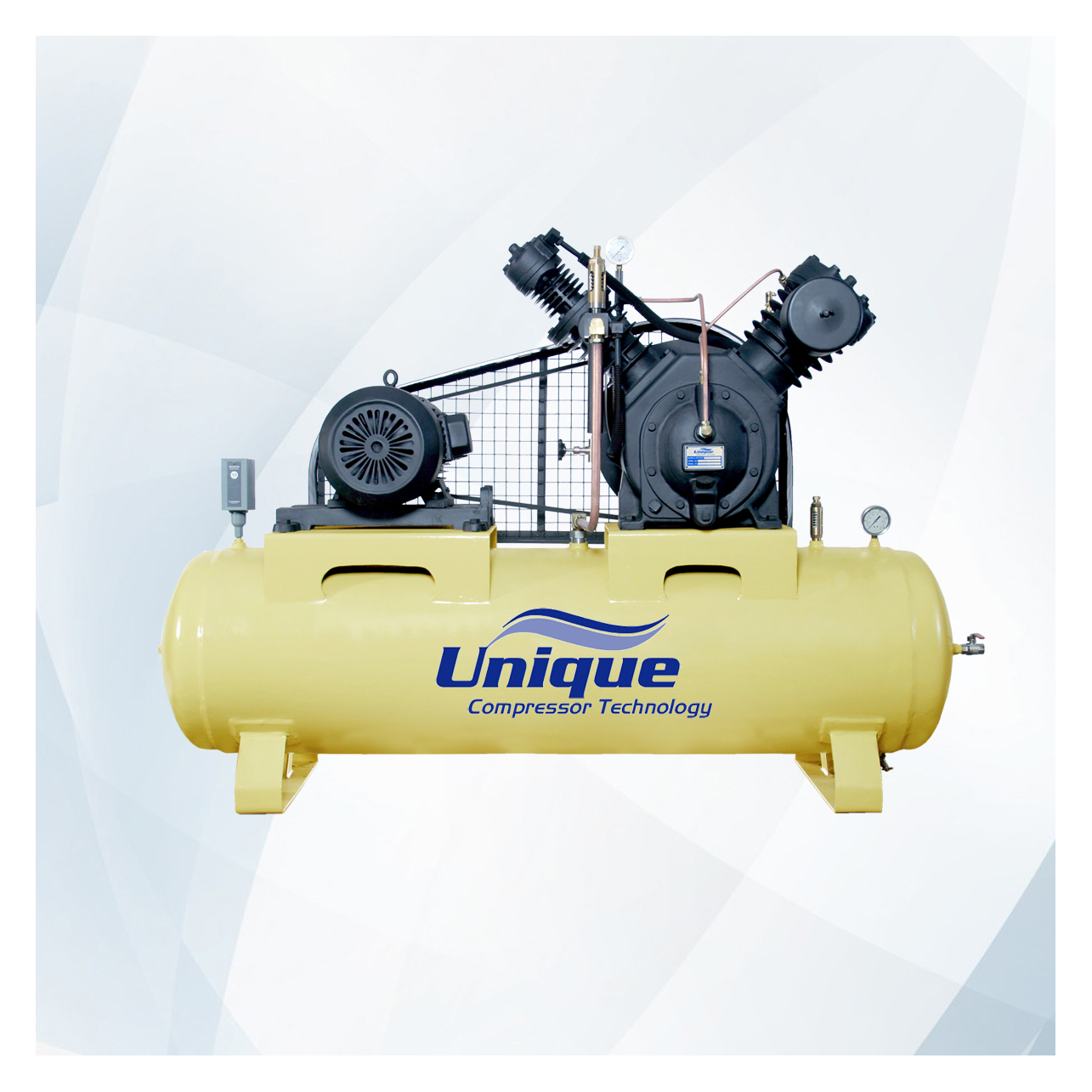

MULTI STAGE HIGH PRESSURE AIR COMPRESSORS
Model	No. of Cylinder	Piston Displacement			Maximum Pressure		Motor
Model	No. of Cylinder	CFM	M3/HR	LPM	PSIG	KG/CM2	HP	KW
UCT-10-231	2	7.40	12.56	209	500	35.15	3.00	2.20
UCT-10 -231	2	10.80	18.33	305	500	35.15	5.00	3.70
UCT-10-7T4	2	13.10	22.23	371	1000	70.30	5.00	3.70
UCT-10-7T2	2	24.75	42.00	700	500	35.15	7.50	5.50
UCT-10-7T2	2	36.00	61.09	1019	500	35.15	12.50	9.30
UCT-10-15T2	3	41.25	70.00	1167	500	35.15	15.00	11.00
UCT-10-15T2	3	49.50	84.00	1401	1000	70.30	20.00	15.00

All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise.
