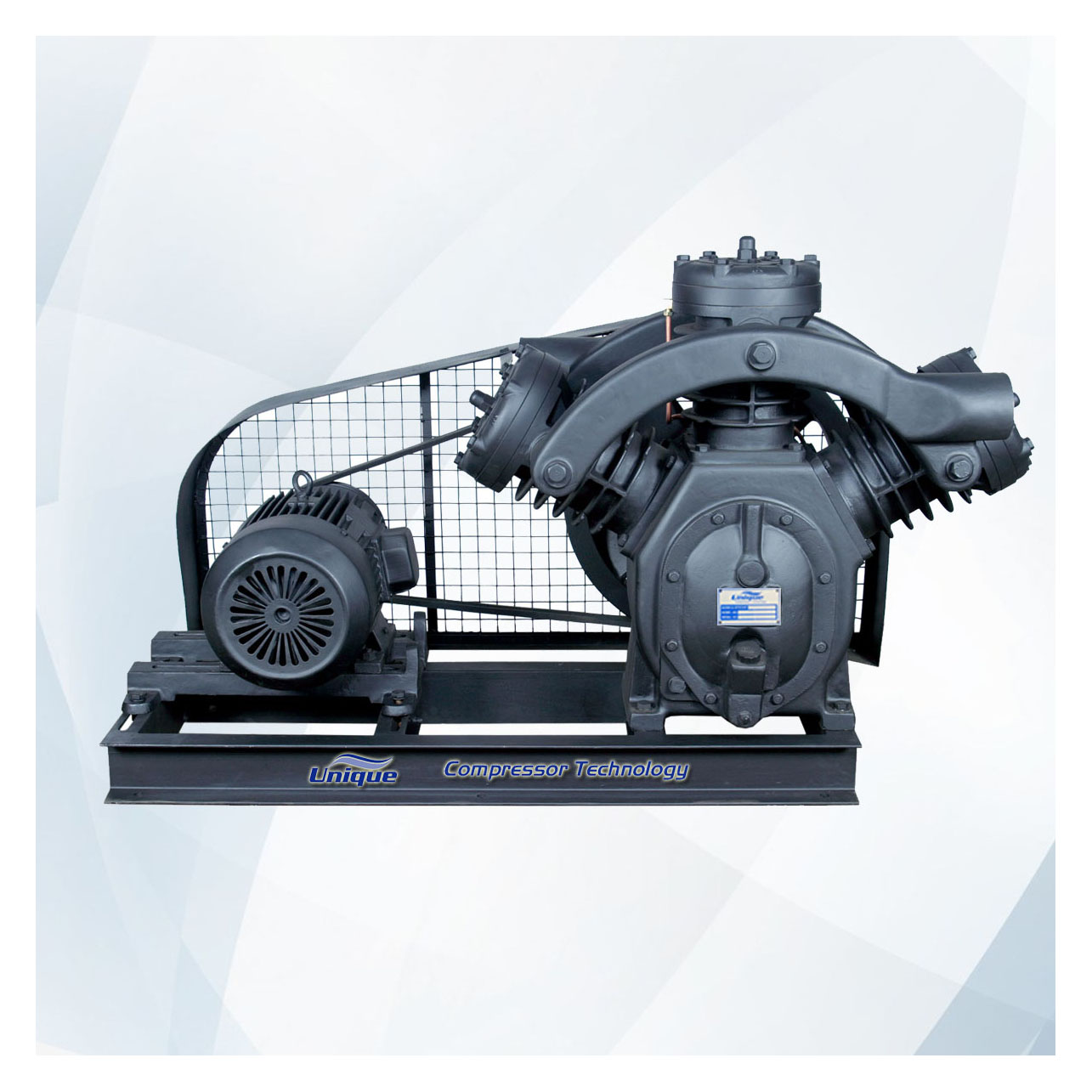

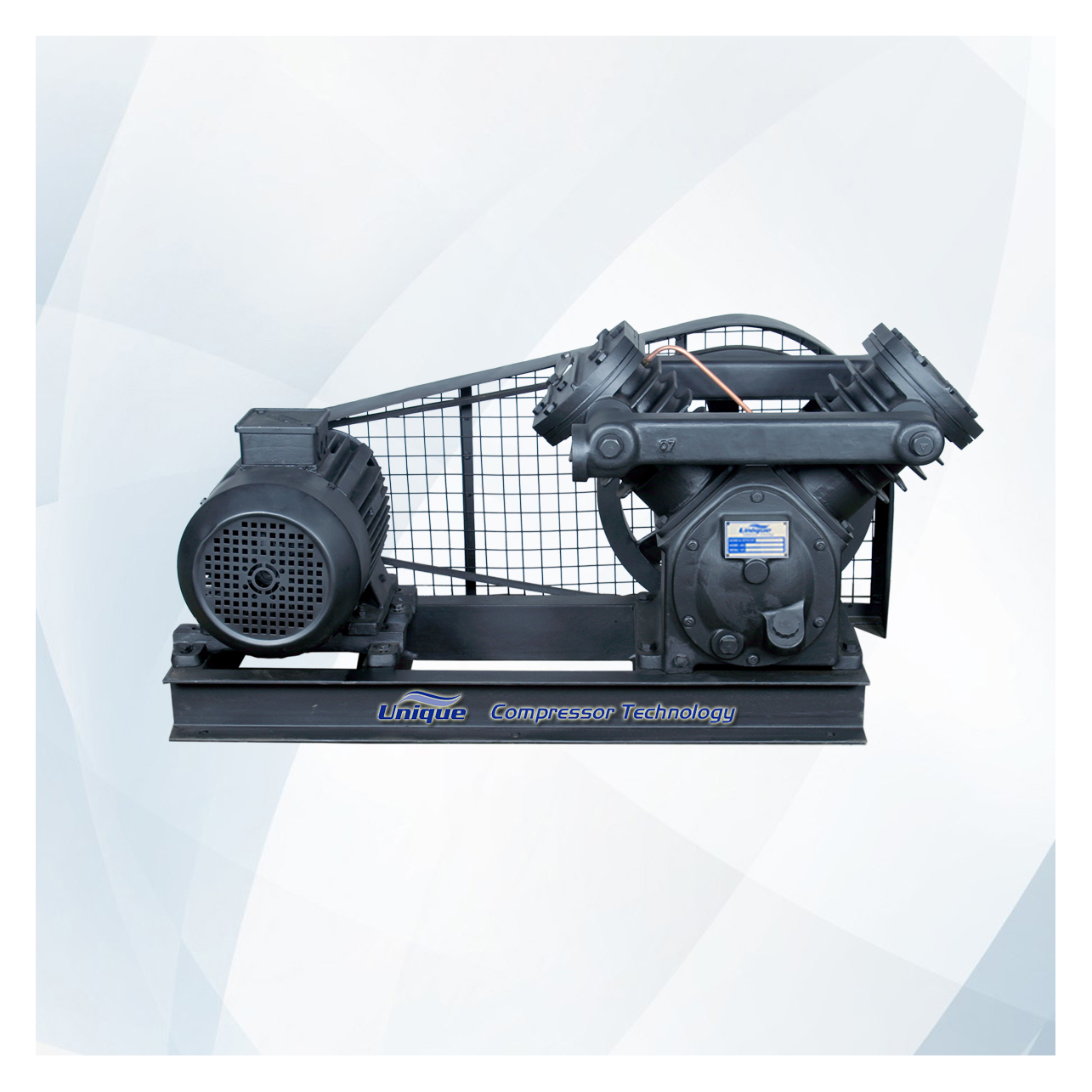

Single & Two Stage Dry Vacuum Pumps

SINGLE & TWO STAGE DRY VACUUM PUMPS
Model	No. of Cylinder	Piston Displacement			Vacuum		Motor
Model	No. of Cylinder	CFM	M3/HR	LPM	Inches	MM	HP	KW
UCT-10-235V	2	21.60	36.66	611	29.00	737	1.50	1.10
UCT-10-235VT	2	10.80	18.33	306	29.60	752	1.50	1.10
UCT-10-244V	2	34.60	58.72	979	29.00	737	2.00	1.50
UCT-10-244VT	2	17.30	29.36	490	29.60	752	2.00	1.50
UCT-10-255V	2	60.00	101.82	1698	29.00	737	5.00	3.70
UCT-10-255VT	2	30.00	50.91	849	29.60	752	5.00	3.70
UCT-10-7V	2	110.0	186.67	3113	29.00	737	7.50	5.50
UCT-10-7VT	2	55.00	93.34	1556	29.60	752	7.50	5.50
UCT-10-5V	3	148.50	252.0	4203	29.00	737	10.00	7.50
UCT-10-5VT	3	99.00	168.0	2802	29.60	752	10.00	7.50

All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
